$158.76 – $308.70

Cassette Replacement Parts –
The sample storage cassette is approved for use with the with the Stanford Automated Mounting system used at SSRL protein crystallography beam lines. The cassette is a hard anodized aluminum cylinder (64 mm diameter x 130 mm high) containing 96 sample ports. (For more information visit: smb.slac.stanford.edu/hardware/SAM).

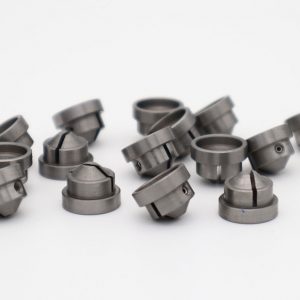

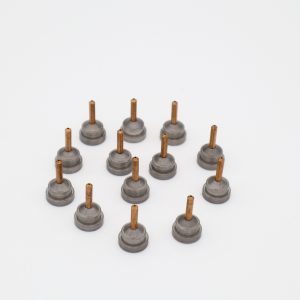

Sample pins are held into the sample cassette ports by nickel coated NdFeB ring magnets (10.4 mm OD, 7.6 mm ID x 2.5 mm). These magnets are held in place by removable polycarbonate washers. Each sample storage cassette accommodates 96 samples and is compatible with 18 mm magnetic sample pin bases and 18 mm magnetic sample pin bases with copper post. Cassettes may be purchased with sample pin bases or sample pins may be purchased individually. Crystal mount tubes and loops/mounts are not included with purchase of pin bases.
