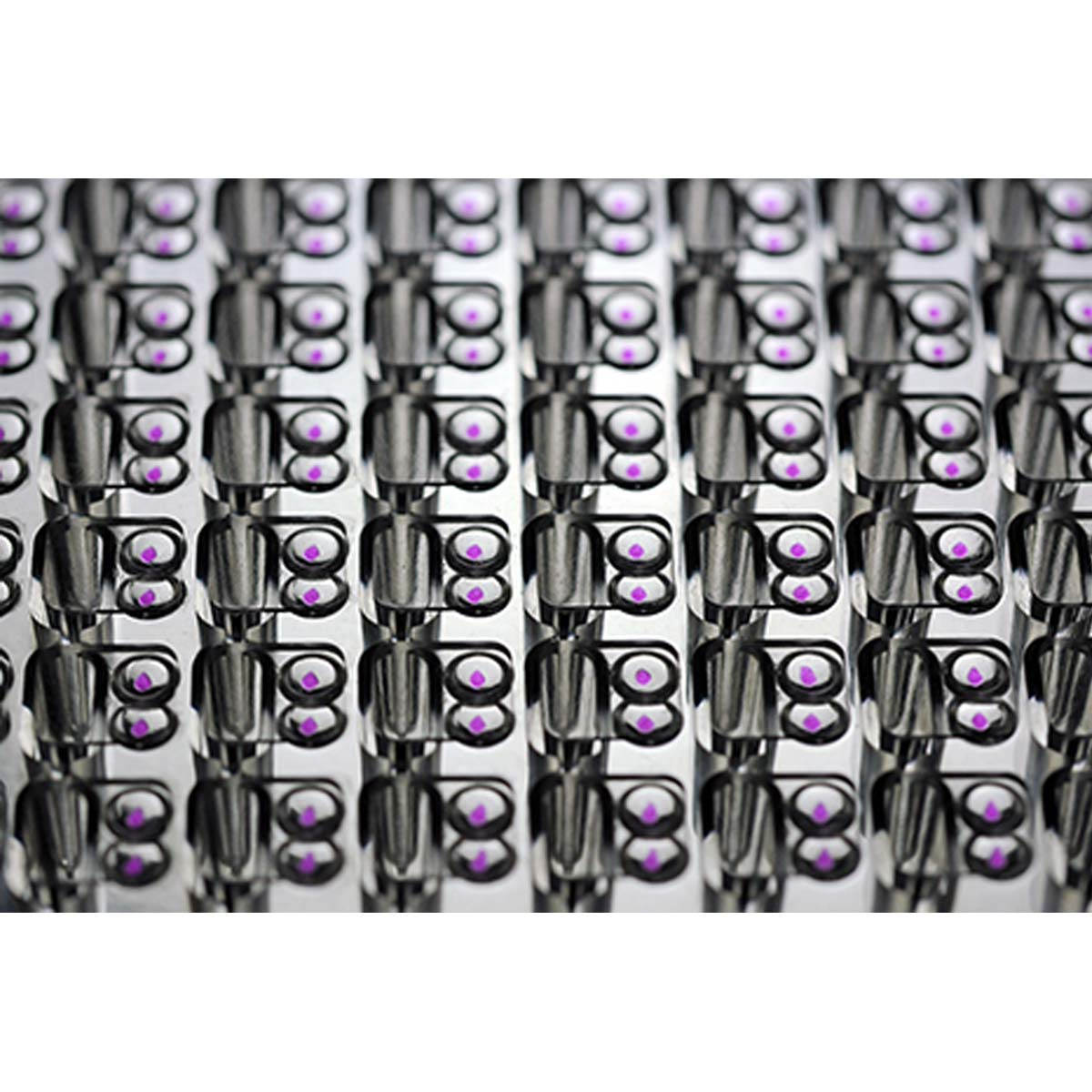

CrystalCube Plate by Cube Biotech
CrystalCube Plate by Cube Biotech

CrystalCube Plate by Cube Biotech

Fully automatable method, compatible with any nanoliter robot
Combines LCP with vapor diffusion to increase success rate
Requires low protein concentrations (2-5 mg/ml)
Suitable for use under UV and polarized light


SKU: N/ACategories: 96 Well Plates, Crystallization Plates & Accessories, LCP Crystallization Plates, Membrane Protein Crystallization, Membrane Protein Crystallization Plates

Product Information

  • Product Description
  • Product Specification

LCP crystallization is the most popular method for membrane protein structure determination. Experiments are typically done in batch format. However, it is well known from the crystallization of soluble proteins that vapor diffusion can be a lot more powerful. The controlled in meso phase (CIMP) method combines the benefits of LCP and vapor diffusion to push membrane protein crystallization to new limits [1]. The patent-pending In-Meso Crystallization Plate provides an easy start with this revolutionary method.

Several in meso phases can be reached with the CIMP technology, crystal formation can happen in any of these phases:

  • Hydrated LCP phase: a modified lipidic cubic phase with water contents between 90 and 45%.
  • Lipidic cubic phase (LCP): the classic in meso phase with water contents between 45 and 26%. Batch experiments typically are set up at water contents between 30 and 35%.
  • Lamellar phase: characterized by increased contact between proteins. Water content below 26%

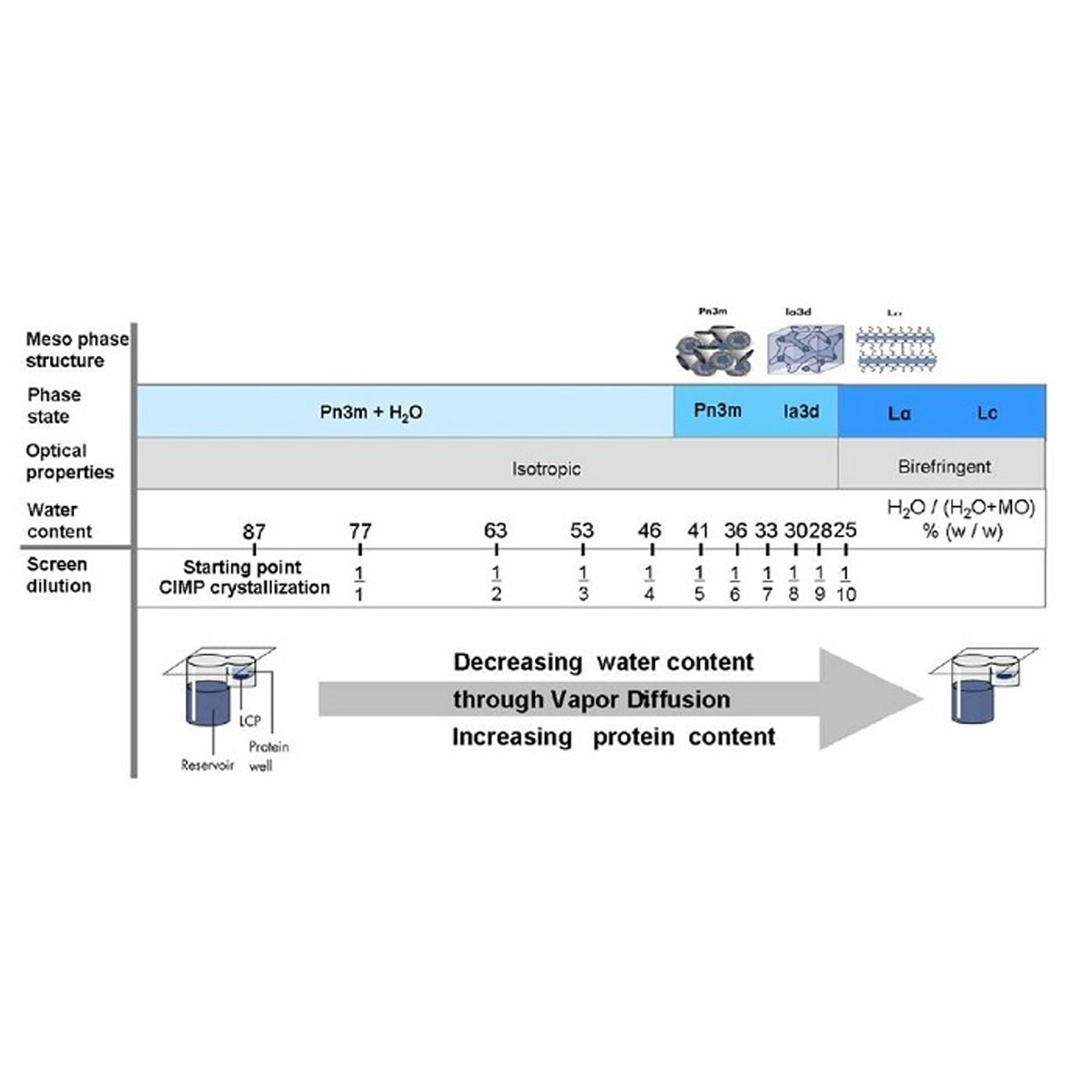

Relationship between dilution of precipitant solution in the protein well, water content of the equilibrated protein drop, and the in meso phase that can be reached in a given experiment. Adapted from [1].


[1] Kubicek et al. (2012) Controlled In Meso Phase Crystallization – A Method for the Structural Investigation of Membrane Proteins. PLoS ONE 7:e35458
